American Thermal Tank Coils – Complete Design Package
American Thermal’s all-in-one design and fabrication package not only saves on capital and installation time but also eliminates the need to contract a third-party engineering company for tank coil system design. We can also assist your engineering firm if necessary.

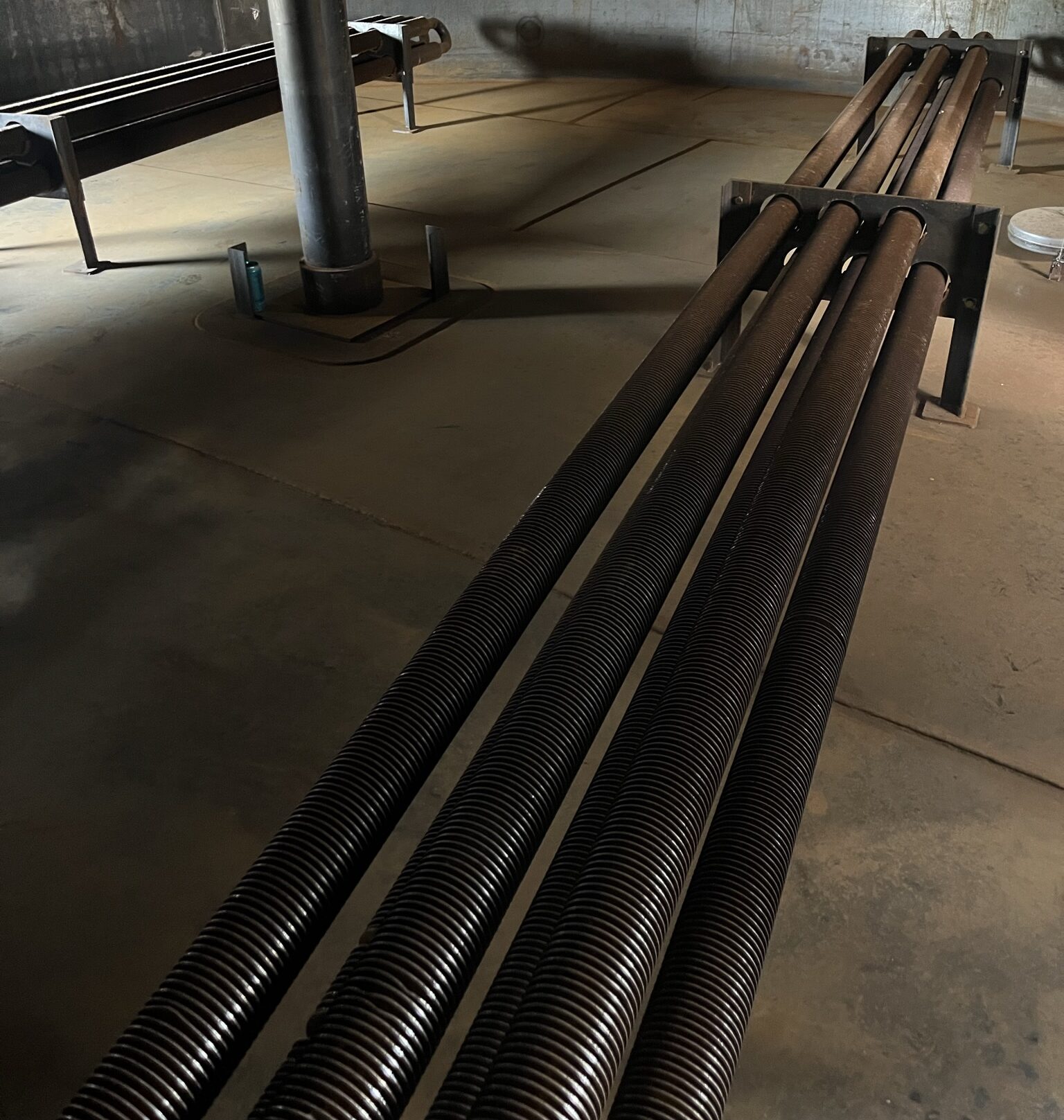

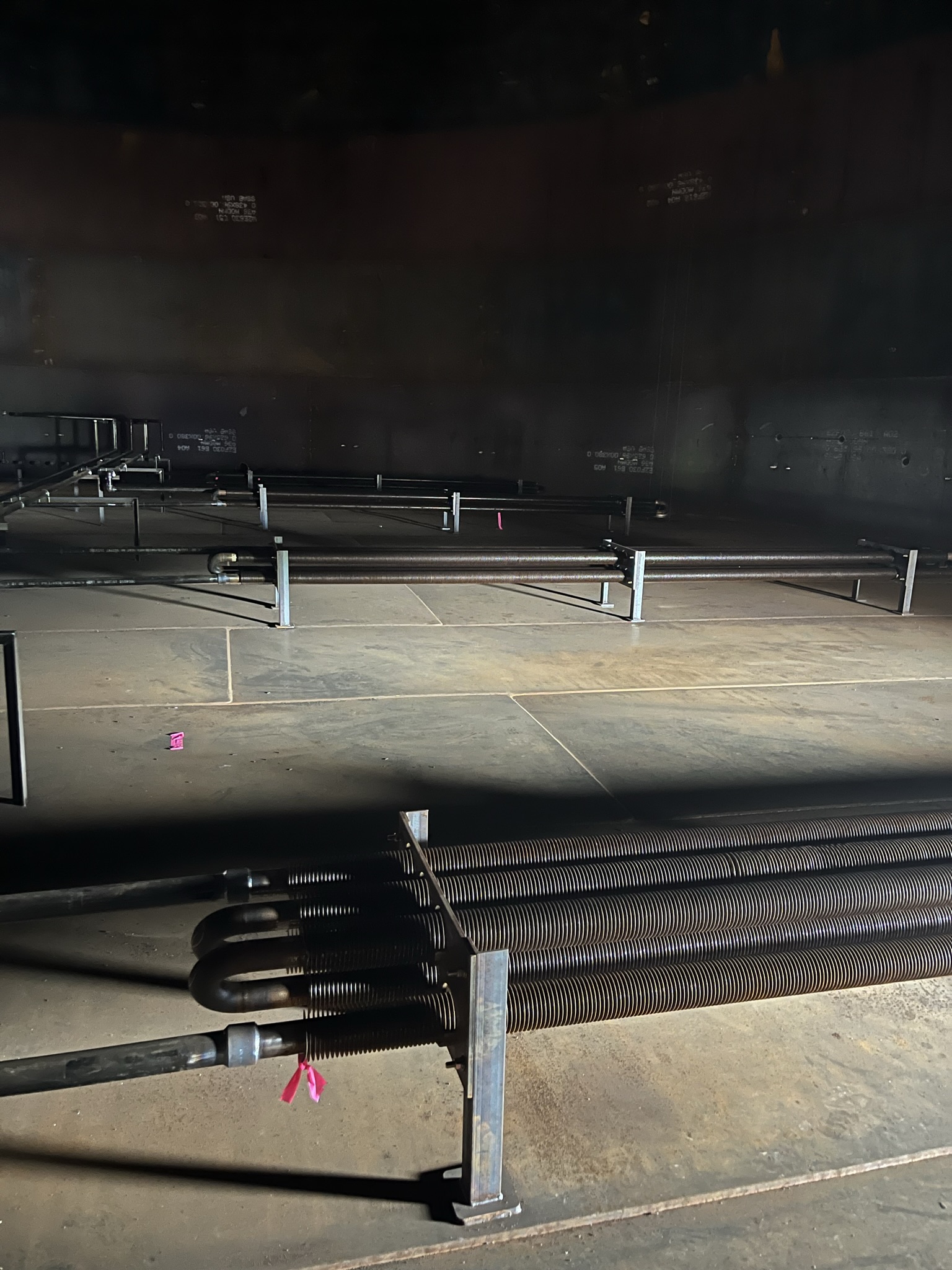

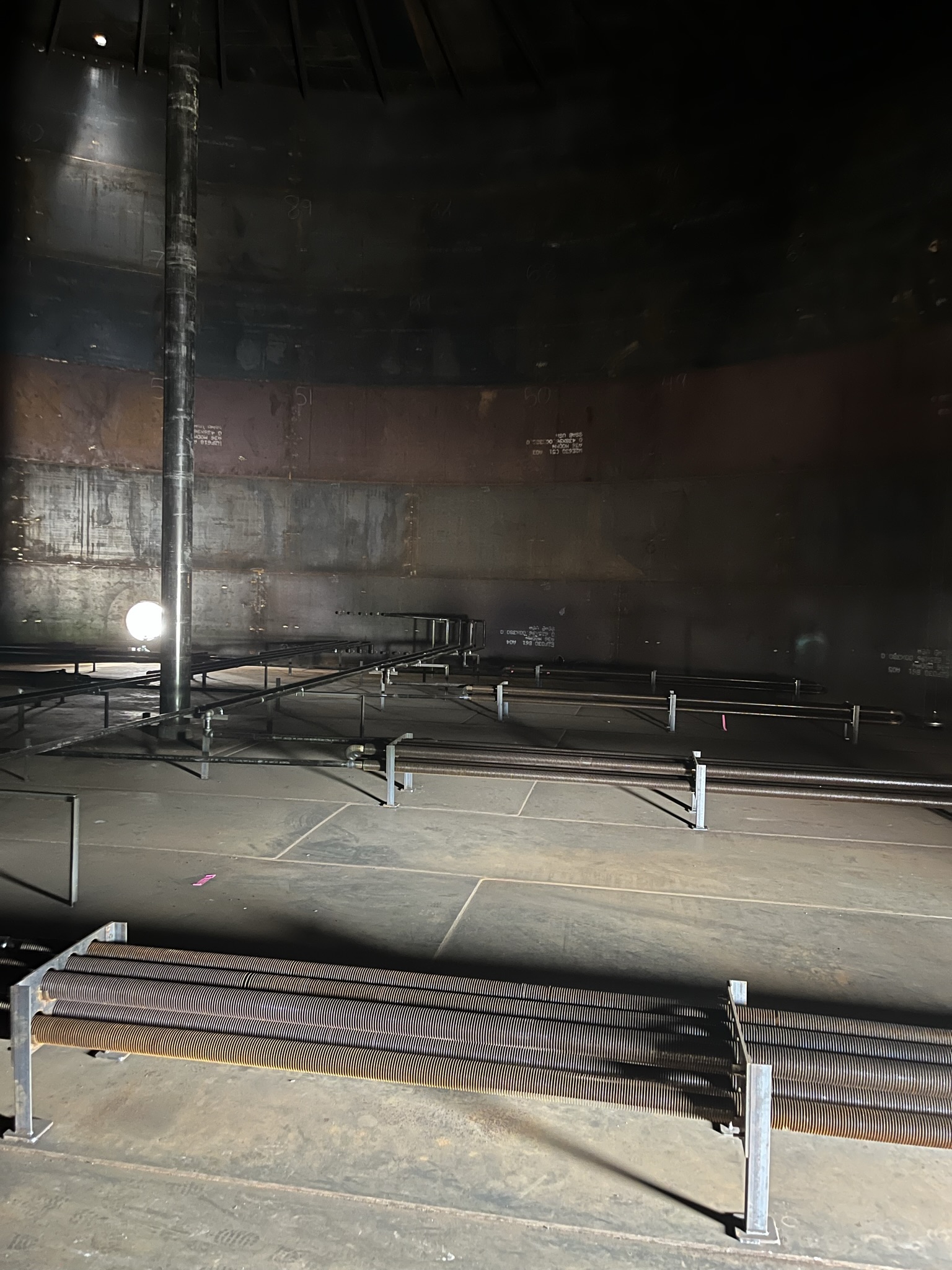

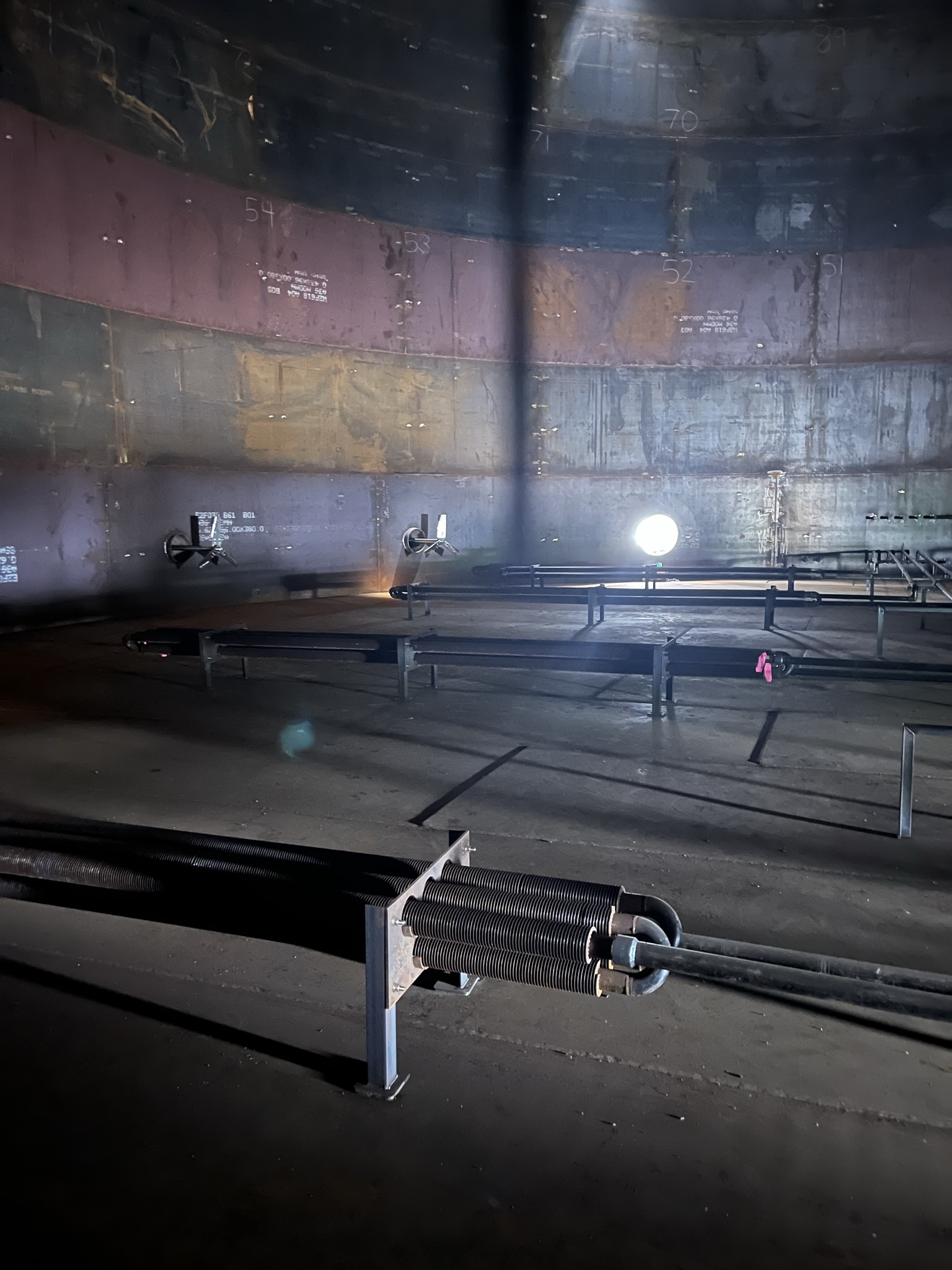

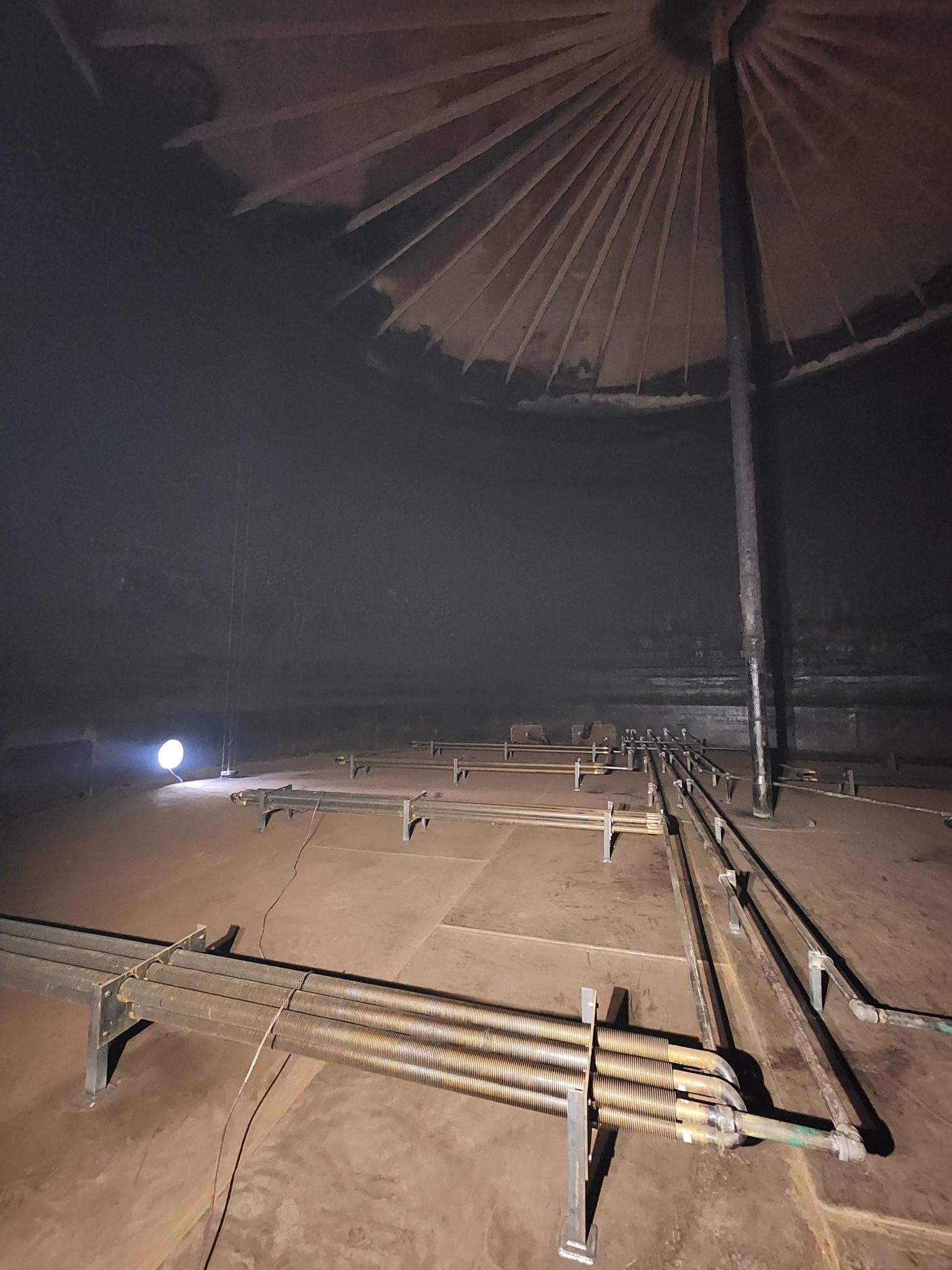

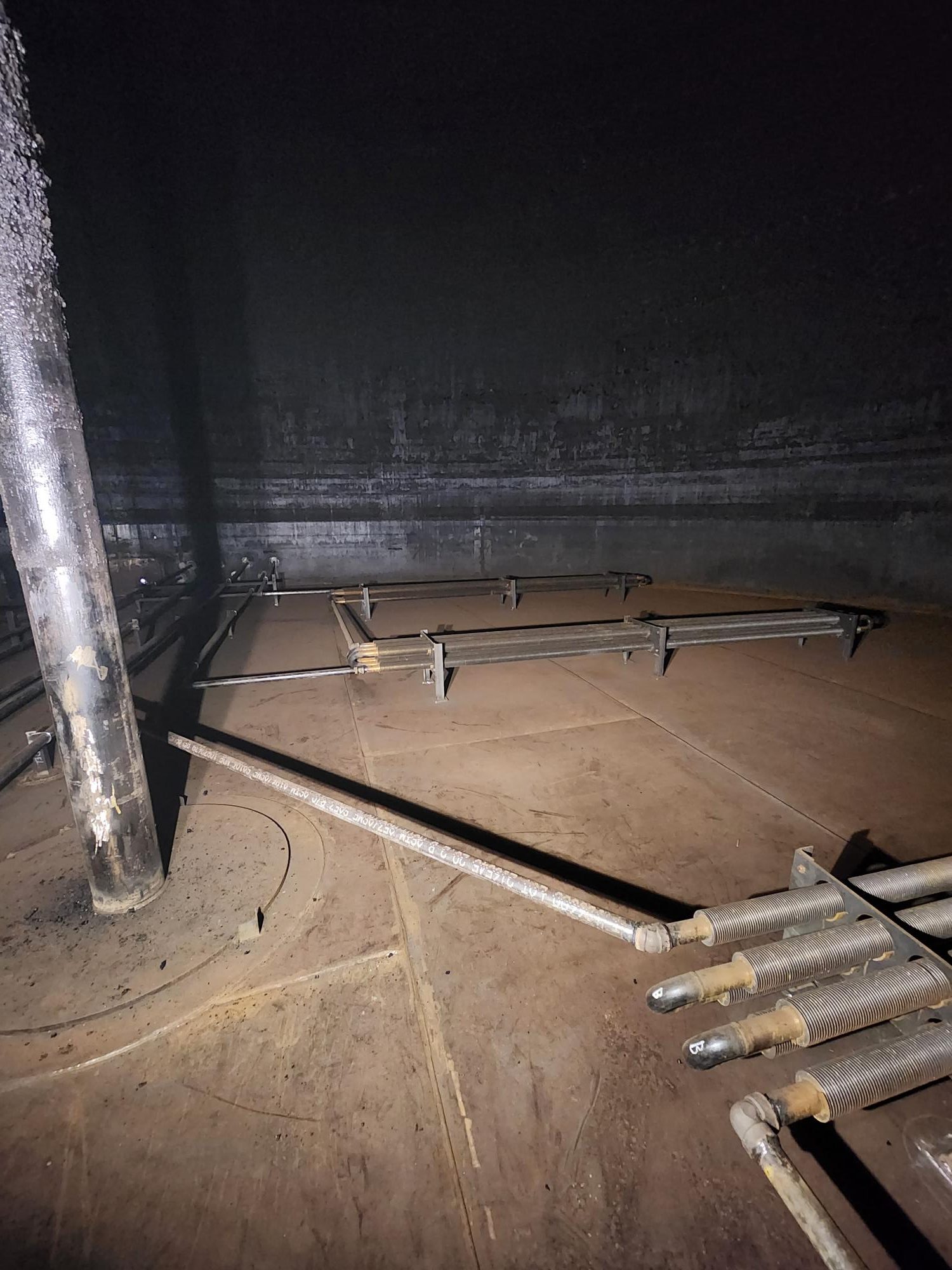

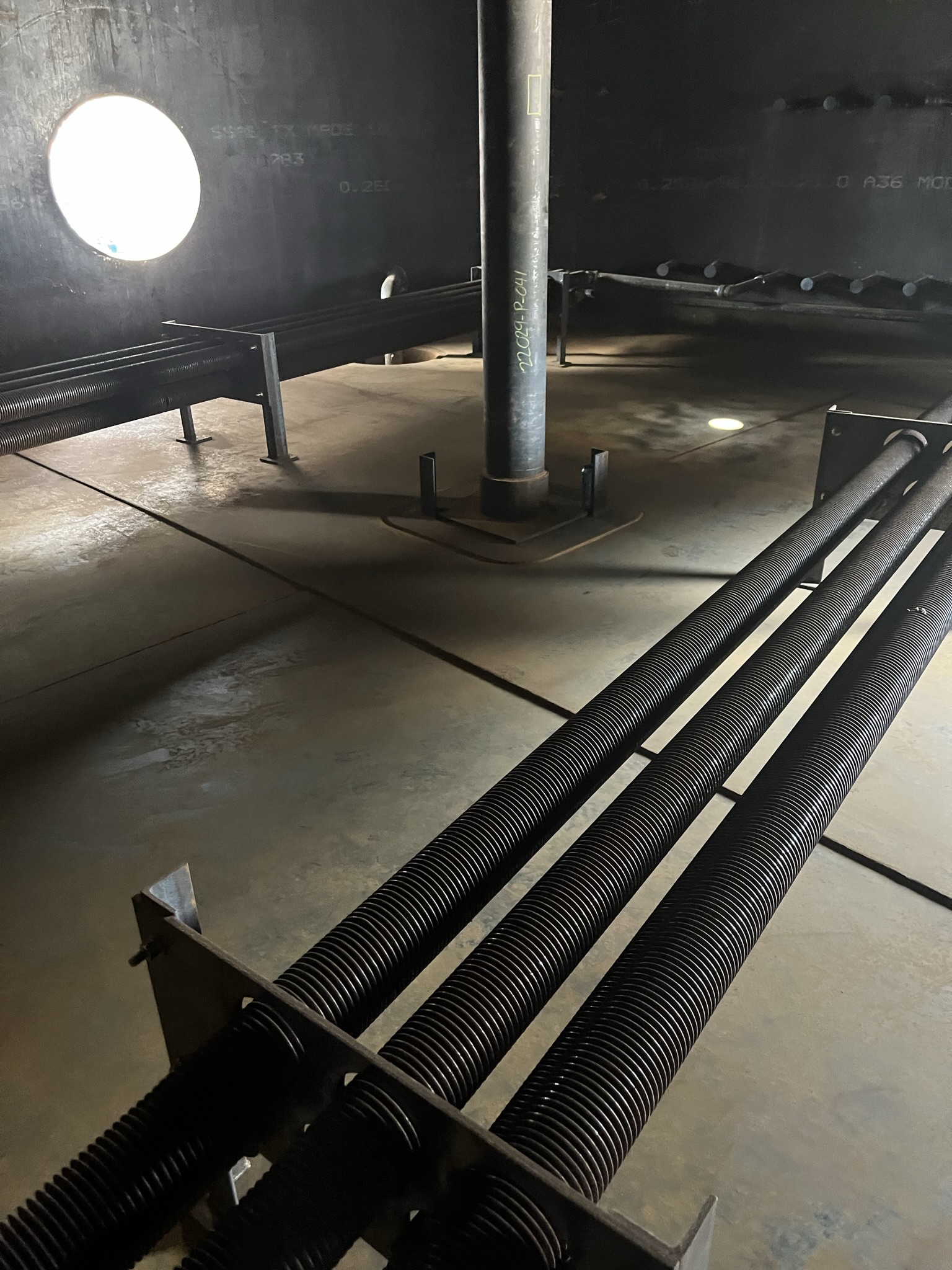

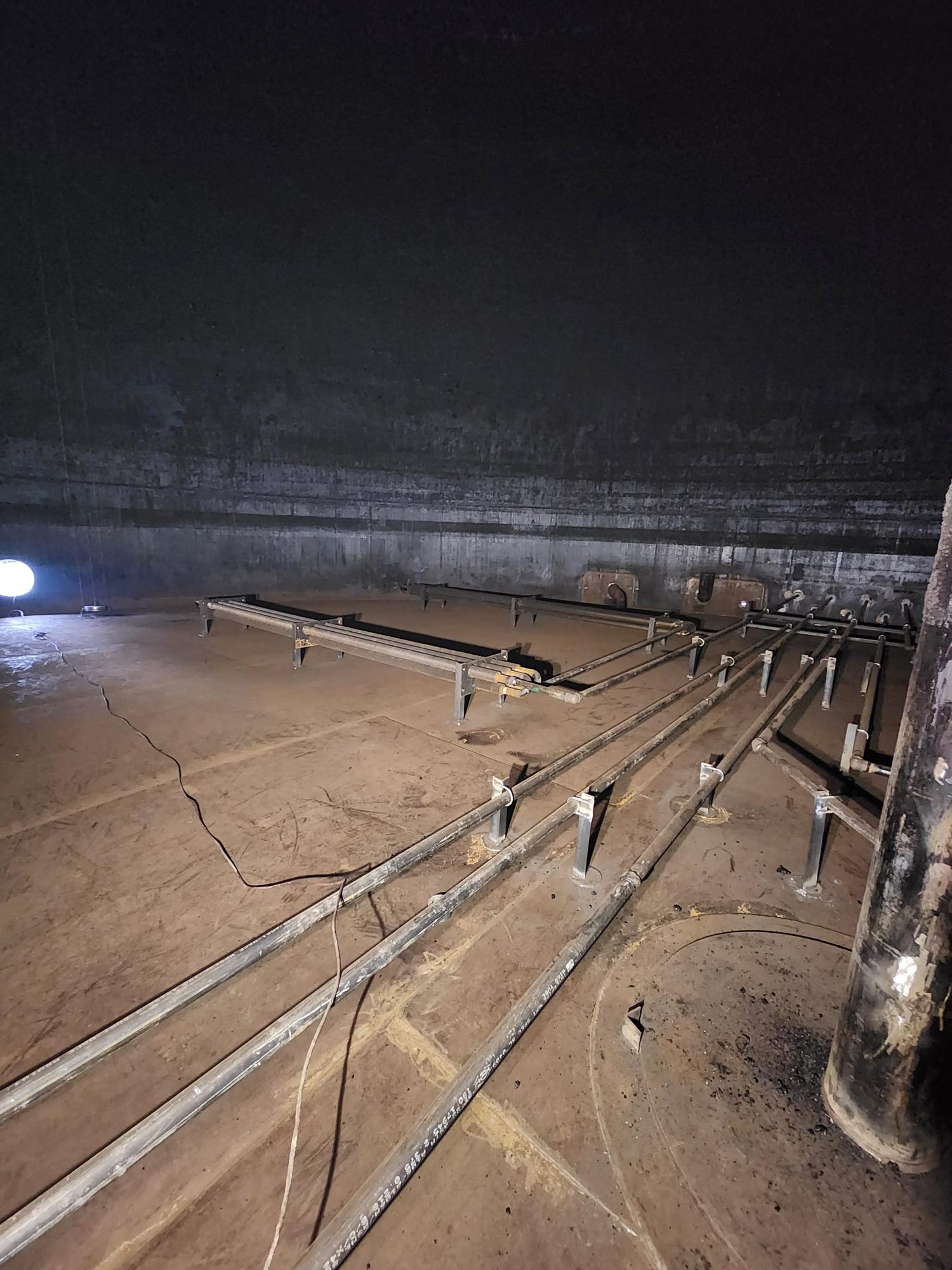

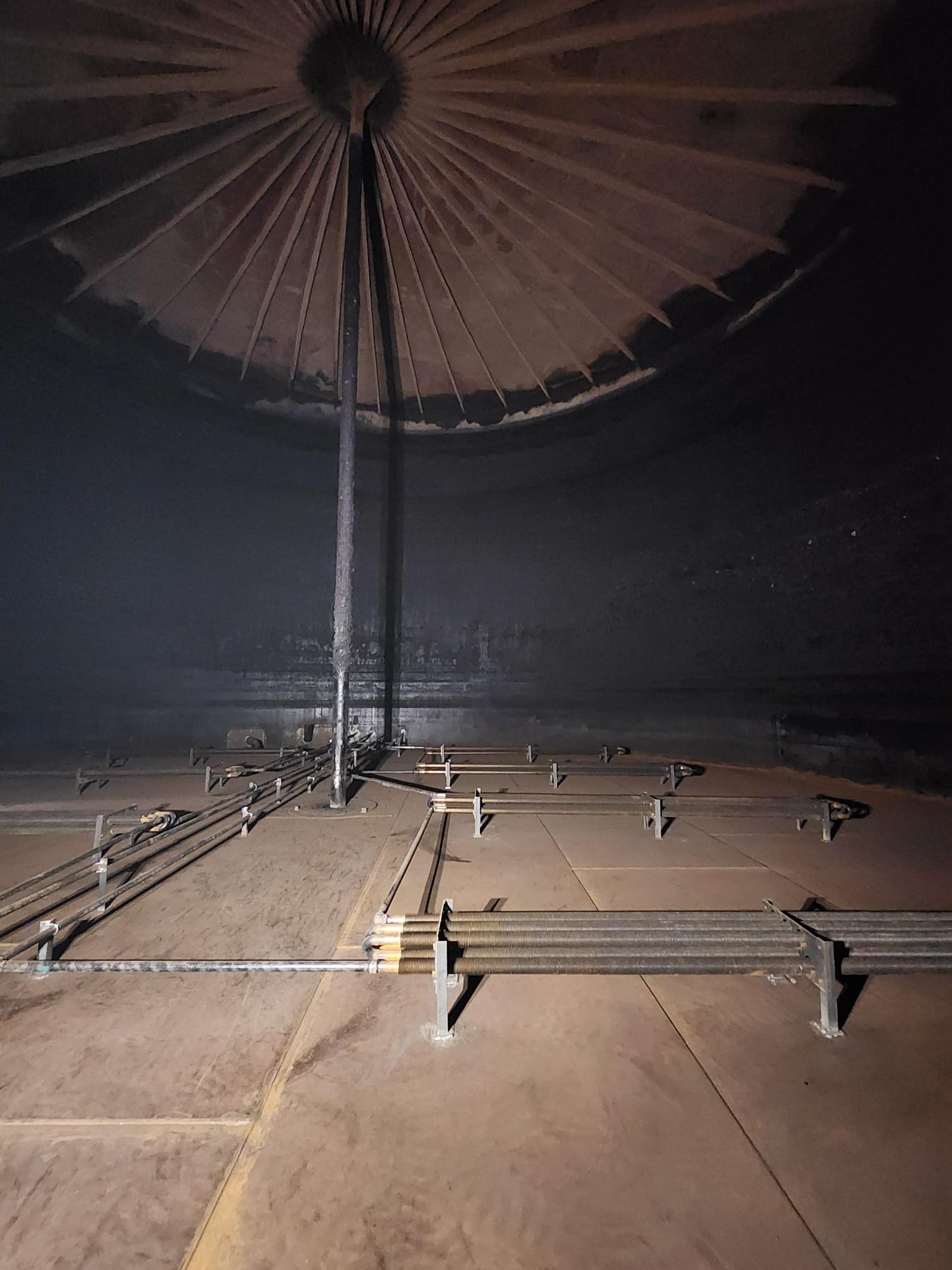

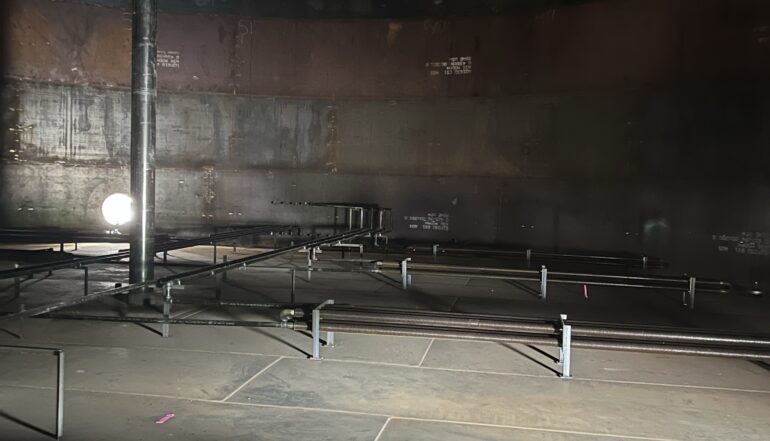

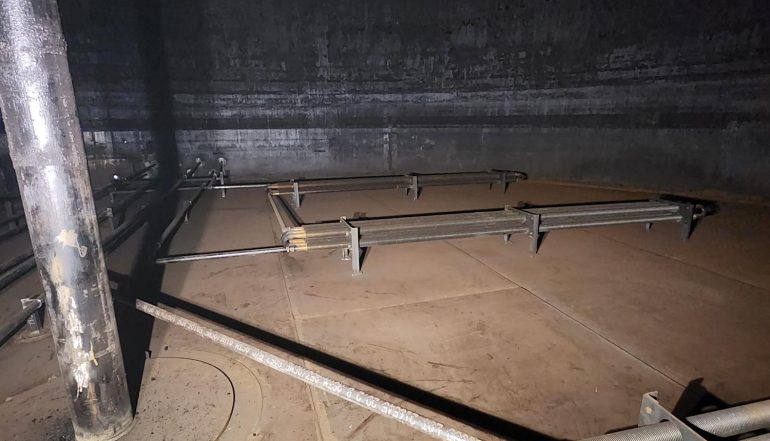

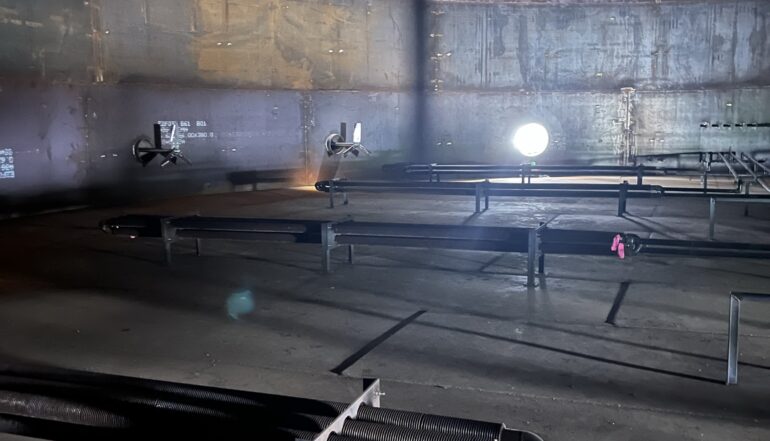

Finned Tank Coils versus Bare Pipe (Old Way)

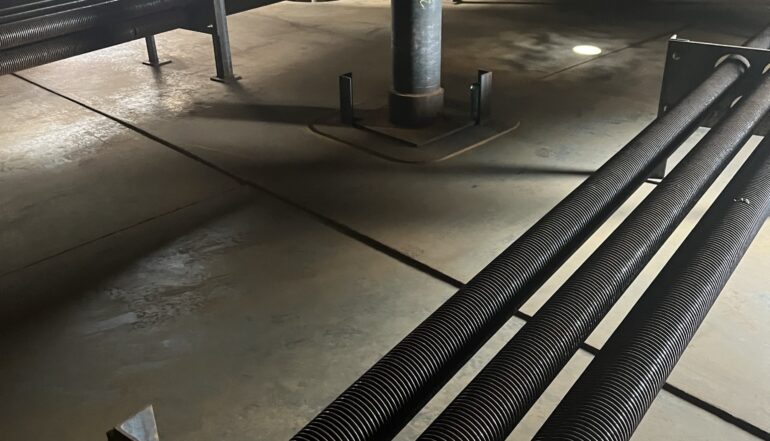

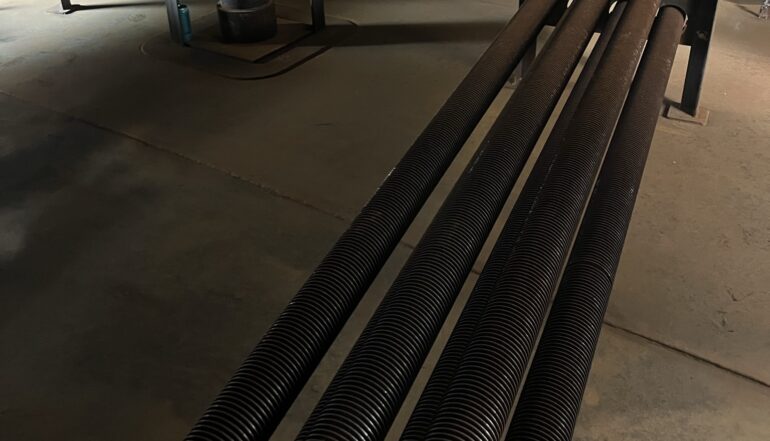

There is simply no question that using a finned pipe solution in place of bare pipe will result in substantial cost and time savings. American Thermal’s tank coil design, featuring finned pipe technology, provides 10-12 times the surface area of bare pipe, ensuring faster heat transfer and minimizing overall piping requirements. Reduced piping translates to fewer welds, leading to both a decrease in overall installation time and cost. When it comes to saving time and money, finned pipe is a big deal!
Why we choose finned tube technology over bare piping:
- 10-12 x the surface area of bare piping
- Prefabricated and hydrotested to ASME code standards before tank installation
- Lower installation cost and time
- Minimal welds inside the tank
- Thermal performance guaranteed

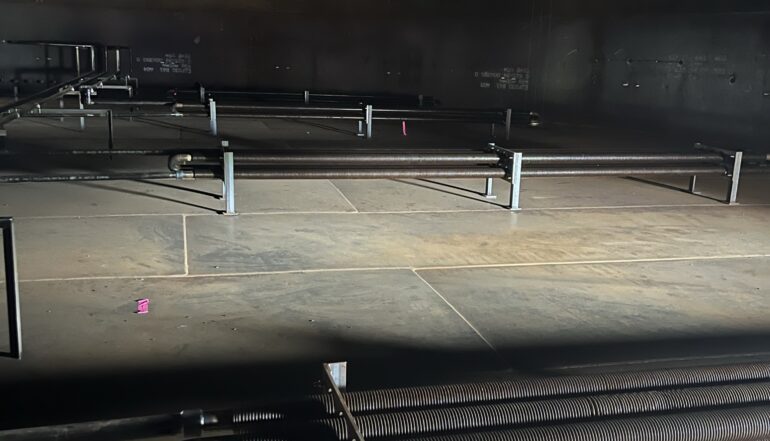

- Tank floor is free for X-ray inspection, with the ability to X-Ray beneath the coils
- Bare pipe solutions often lack performance data and are copied from past projects.
- Custom Tank Coil Design
- Industry Leading Finned Tank Coils
- Suggested Drawing Layout
- ASME Code
Benefits of American Thermal Customer Engineered Design
1. Complete design package with thermal calculations including:
- Heat loss and heat boosting estimate
- Surface area requirement
- Pressure drop estimate
- Temperature and flow rate requirements
2. Suggested layout drawing.

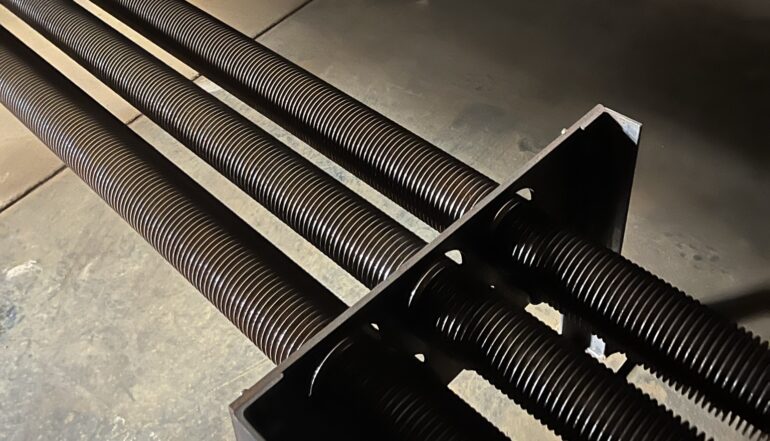

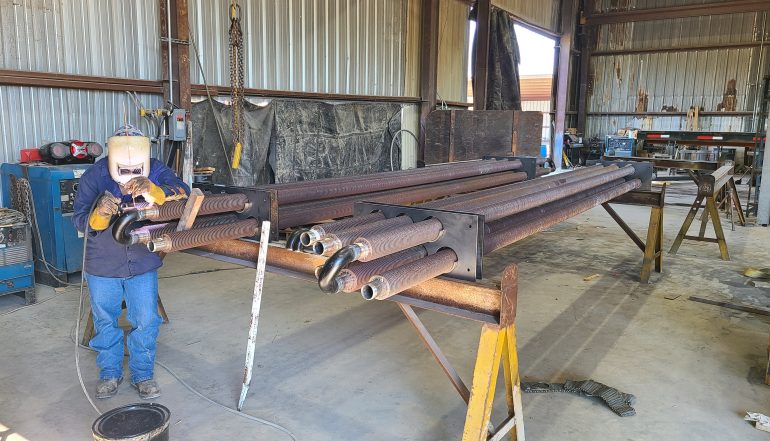

3. Continuously welded fin technology.

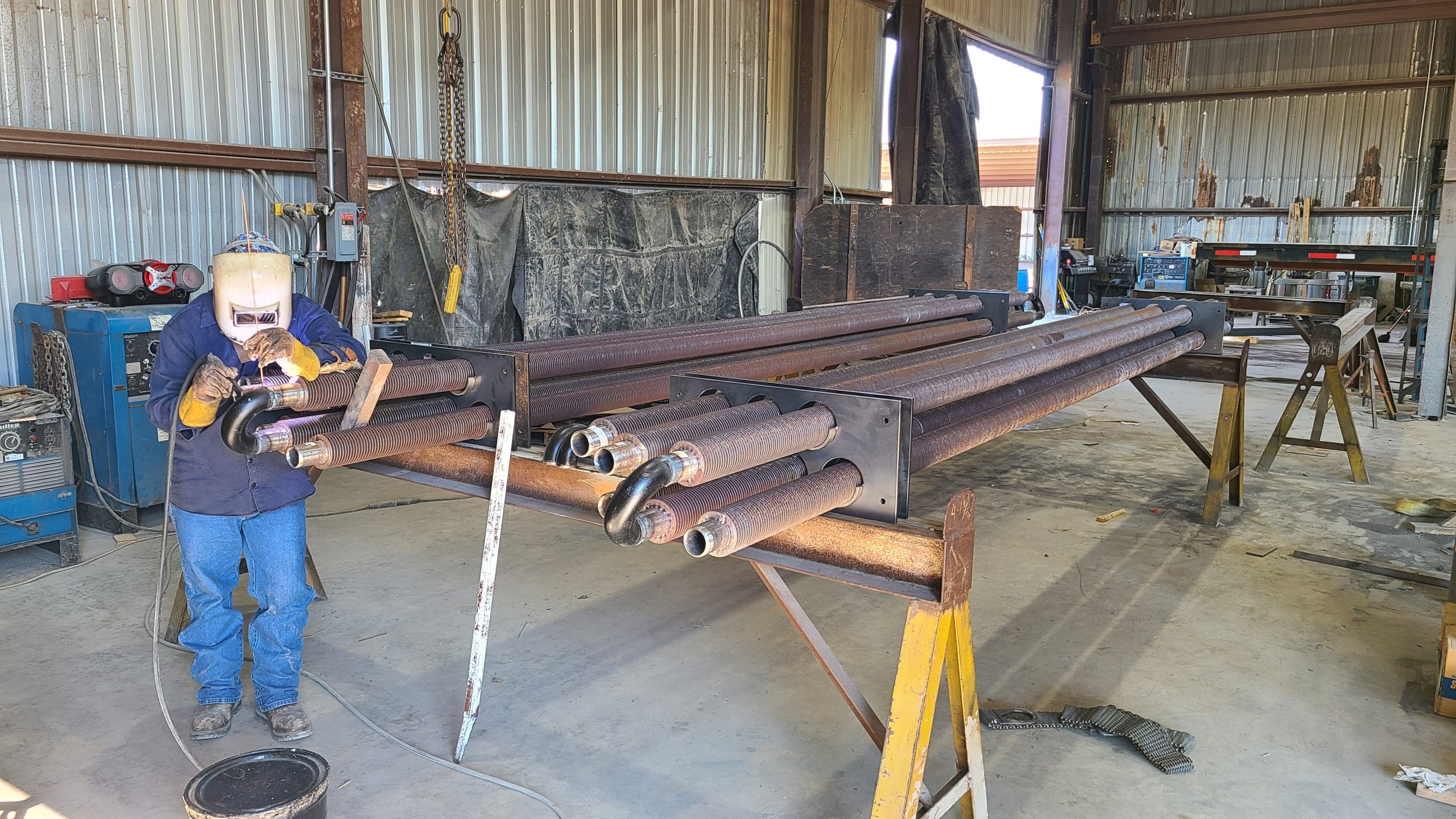

4. Fabricated and hydrotested per ASME code in an ASME Code shop.

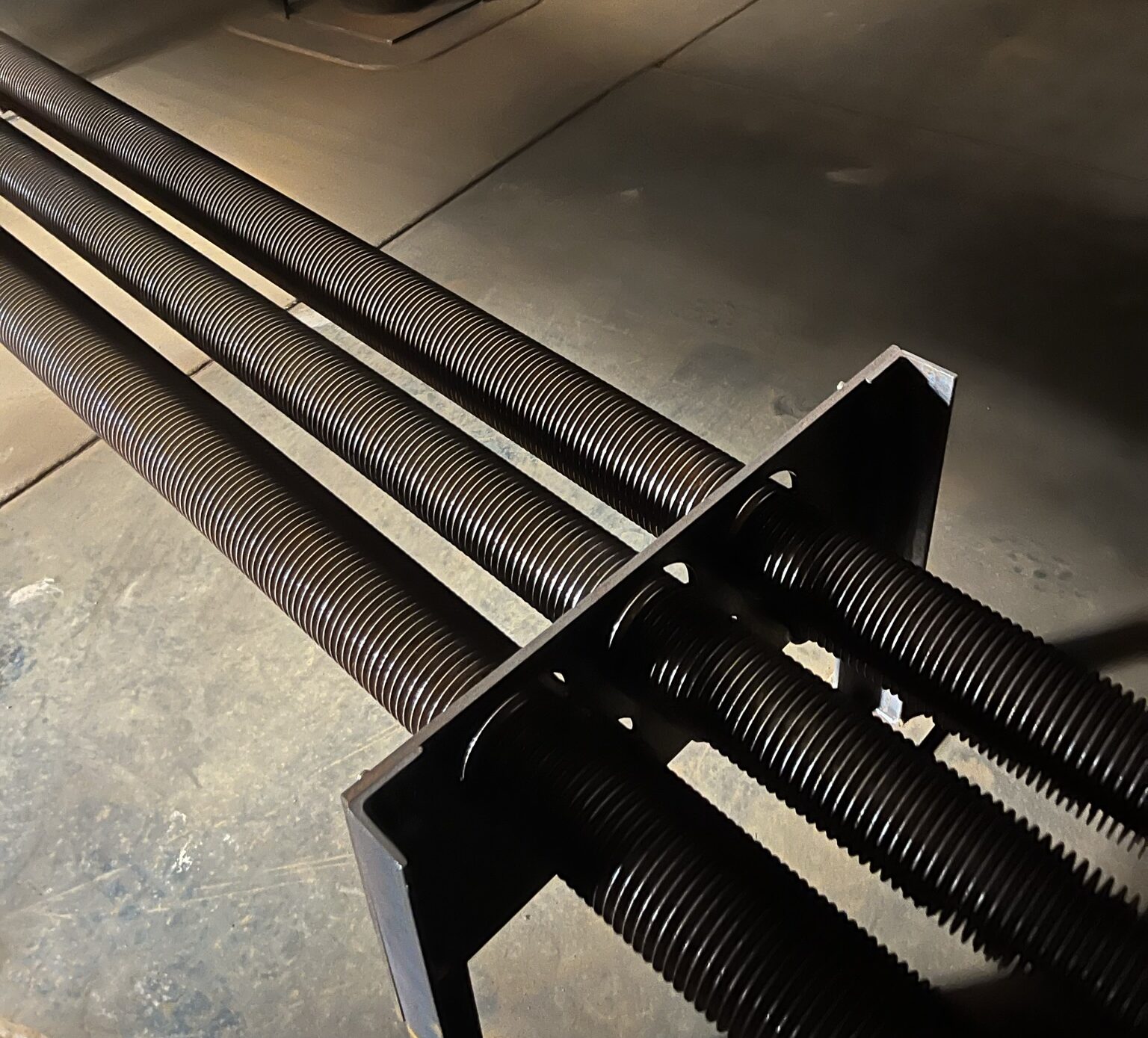

5. Tube support and bolt on legs are included.

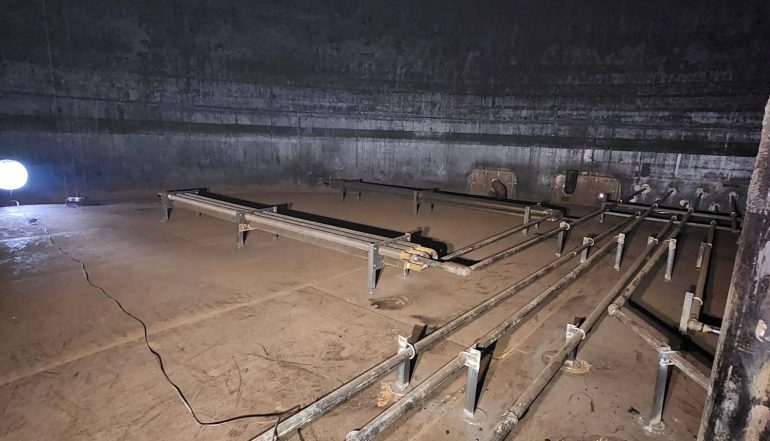

6. Tube support designed for thermal expansion, allowing for feet to be welded to the floor.
